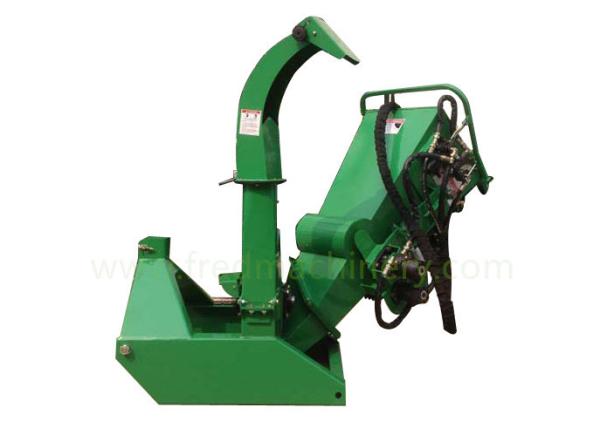

4'' Chipping Capacity Wood Chipper Hydraulic Feed PTO Driven Wood
Chipper For Garden Tractor
Heavy Duty Chipping Power.
At the heart of the Wallenstein BX Chipper is an oversize heavy
duty rotor and double edge chipping blades. The large diameter
rotor has a faster tip speed for improved chipping action. The
heavy gauge steel keeps your momentum to power through tree trunks.
The reversible blades are precision cut tool steel, hardened for
long lasting sharpness.
Turn branches and leaves into a valuable resource that's perfect
for pathways and flowerbeds with a Wallenstein Chipper. Chipping is
your best method of reducing large, awkward branches to a fraction
of their size, making handling easy and creating a useful ground
cover that helps control weeds and retain moisture in hot weather.
There are no belts or pulleys to worry about when you’re in the
woods. Directly connected to your tractor's PTO, power is
transferred straight into chipping action. 4" diameter logs are
quickly mulched with the BX42R.
With a PTO powered rotor and hydraulic feed hopper, branches, limbs
and brush are control fed for continuous chipping at maximum
capacity.
* 18- Range
* Hydraulic Roller Feed
* 35-40 HP Required for Max. Capacity
* 4” x 10” Chipper Housing Opening
* 25” Rotor with 4 Knives at 210lbs.
* Dimensions (LxWxH) 40” x 42” x 60”
* 60” Discharge Hood Height
* 625 lbs. Total Weight
* Optional Hydraulic Power Pack
* PTO drive with shear bolt protection included
* Requires 3 plus g.p.m. from tractor remotes
* 3PH mount iMatch & quick hitch compatible
* Pioneer style ball type hydraulic couplings included standard
* Some assembly required.
Rotor
At the heart of the Wallenstein BX Chipper is an oversize heavy
duty rotor and reversible chipping blades. The large diameter rotor
has a faster tip speed for improved chipping action and the heavy
gauge steel keeps your momentum to power through 6” diameter tree
trunks.
Blades
The double edge blades are precision cut tool steel and hardened,
keeping a sharp cutting edge and maximizing the performance of the
chipper.
Air Vents
Blowing force is maximized with air intake vents on the side of the
chipper. Air enters through the vents and powers the chips out the
chute up to 20 feet.
Twig Breaker Blower Paddles - Behind the blades are blower paddles
with integrated twig breakers designed for greater output force and
smaller chips exiting the machine. This provides more consistent
chip size and allows you to propel the chips further.
Adjustable Chute - Easily control where you want the chips with the
double adjustable Exit Chute. The chute swivels 360 degrees and the
top deflector adjusts the distance.
Mounting Configurations - There are three different mounting
configurations available for the BX Wood Chipper; A three point
hitch, skidsteer mount and trailer.
Hydraulic Feed Hopper - Maximize your chipping with the aggressive
hydraulic feed hopper. Chipping becomes effortless when you let the
rotating teeth do all the work. As the brush is fed into the
chipper, you can be ready with the next piece.
Match Your Style - This unit is available in tractor-matching
colors: Red, Orange, Green, Blue, Yellow. We typically stock red
and/or orange. Please call 208-265-0415 for color availability.
Specifications
Capacity 4" (10 cm) Diameter;
Rotor Diameter: 25" (64 cm); Weight: 210lbs. (95kg)
Knives 4 Hardened Tool Steel Rotor Knives
Feed System Self-Feeding
Unit Drive Type 540 RPM Rear Tractor PTO
PTO Speed 540 RPM
PTO Shaft Included, with Shear-Bolt Protection
Hitch Connection Type Category 1, 3-Point Hitch
