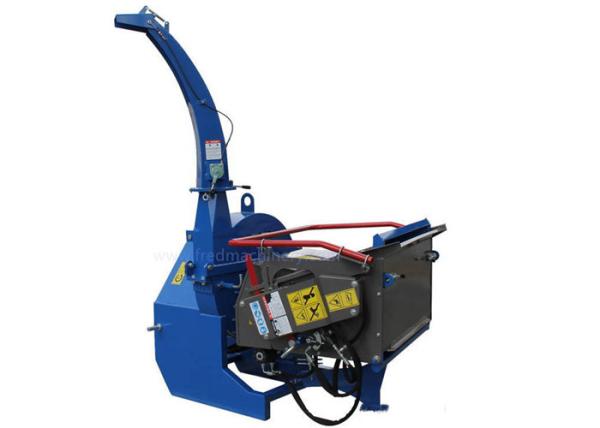

7 Inches PTO Drive Wood Chipper With Hydraulic System And Oil Tank

Features:

• Hydraulic system contains oil tank, hydraulic pump, hoses, oil control valve and control handle
• Hydraulic transmission with double horizontal rollers
• Matched tractors from 30 HP (22KW)
• 4 cutting knives and 1 bed blade
• Stop-Forward-Reverse-Stop functions
• Roller opening: 5’’ x 8’’ (127x200mm) for BX52R And 7’’ x 10’’(177.8x 254mm) for BX72R
• Upper roller height adjustable
• Rotor lock system outside chipping house
• Discharge outlet with 360° rotation
• Safety handles included
• Safety from hopper folded during transportation
• OPTIONAL: hydraulic oil meter and support legs

TRACTOR REQUIREMENTS

The Fred BX72R requires a tractor at least 40 hp. at the PTO. Of course chipping capacity is directly related to horse power and torque, therefore with 40 hp.

SLEEK HYDRAULIC HOSE CONFIGURATION

The hydraulic hose configuration for the BX72R has been streamlined to eliminate the possibility of snagging a hose and offers a sleek new look.

SELF CONTAINED HYDRAULICS

Fred BX72R chippers are complete with a self-contained hydraulic pump and a 24L Oil tank to power the two infeed motors. Hydraulics are not required from your tractor.

VARIABLE SPEED DUAL HYDRAULIC INFEED MOTORS

Variable speed aggressive dual counter-rotating hydraulic powered infeed rollers work together to pull material into the chipper head. This feature allows the user to slow or fast the infeed speed down to accept large material.

EASY SWIVEL DISCHARGE CHUTE

360 degrees of rotation and two finger operation. We have incorporated a convenient handle that effortlessly allows you to swivel the discharge chute so that you can direct the chips into the back of a truck or trailer without having to move the entire machine. Simply push down on the handle and swing the chute. When you release the handle a spring loaded pin drops down to lock the chute into position. No tools required.

Weifang Fred Machinery Co., Ltd. was established in 2003, located in Junbukou Industrial Estate, Weifang, Shandong, China. The factory area covers more than 13000 square meters and we own more than 90 cutting, profiling, milling, turning, welding, drilling, polishing, powder painting and assembling processing equipment. A new numerically controlled production center (NCPC) was set up at the end of 2014. Quality of parts and machines details are guaranteed.
With its strong techniques power, complete set of machining equipment and experimental devices, advanced CAD R&D methods, the company has all complete production line. Fred Machinery, as a professional manufacturer, has already manufactured a full range of high quality implements matching to small and medium-sized tractors owners across the world. We export large quantity of implements, especially lots of units wood chippers and Front End Loaders each year together with Foton Tractors.
By now,Fred Machinery already has more than 6 serials and more than 20 models of various implements including Wood Chippers, Round Baler, Disc Mower, Foton Front End Loader etc.
Fred Machinery are committed to providing after sales service and supplying a full range of backup replacement parts. All Implements are CE and ISO9001 certified and approved.
Business Scope: Fred Machinery is specialized in developing, production and business operation of civil engineering machinery, modern farming equipment. Fred Machinery is also interested in being the sales agent of the famous foreign farm machinery in China.
Business tenet: FRED shall insist on serving the farm machinery user all over the world with modern science and technology.
Business concept: Quality creates value and service completes perfect.
Business guideline: Adopt advanced science and technology, Aim at top-grade quality, Insist on clients first and take faith and credit as the base of business operation.
Welcome all businessmen to come for discussing business and making friend with us, and we also deal with the business of production against sample or drawings.
